MSO 1300

by IDEMIA

Product Overview

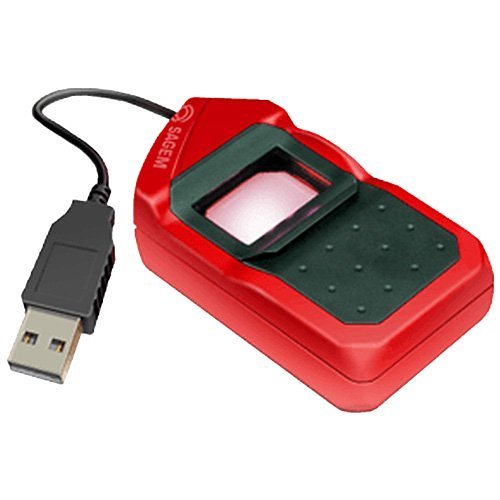

Personal identification is essential for a wide range of desktop applications from access to workstations to cashless payment, etc. The MSO 1300 Series is a range of easy-to-use fingerprint readers, allowing biometric login from desktop. It draws on IDEMIA’s patented optical technology and fingerprint algorithms – recognized worldwide for their high levels of performance and exceptional robustness – to enhance client security with the power of biometrics.

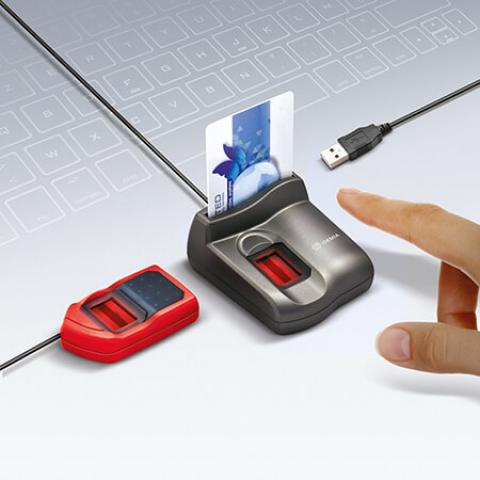

These fingerprint authentication readers take the form of compact USB sensors offering reliable, ergonomic and cost-effective solutions for enrollment, identity verification and biometric login. Their match-on-device (up to 1:10,000 users) or match-on-card functions (for variants equipped with a smartcard reader named MSO 1350), enhanced with extensive security features, guarantee the faultless protection of information.

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Features & Benefits

  • All-in-one solution: superior performance Enrollment, Verification and Identification
  • FIPS 201 and MINEX compliant Feature Extractor & Matcher onboard
  • FBI PIV IQS certification and fake finger detection available
  • Extensive security features, including encryption and digital signature
  • Smartcard reader variant for Match-on-Card applications

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Technical Specifications

MSO 1300 V3 MSO 1300 E3
Dimensions (L x W x H)
  • 68.7 x 39.7 x 15.3 mm (2.7 x 1.56 x 0.6 inches)
Weight
  • 40g (1.41 oz)
Smartcard reader
  • -
Database capacity (users)
  • 500, 3000(1), 5000(2) or 10 000(3)
  • 500, 3000(1) or 5000(2)
Database capacity (templates or fingers)
  • 1000, 6000(1), 10 000(2) or 20 000(3)
  • 1000, 6000(1) or 10 000(2)
Match-on-Device capability (1:N)
  • 1:500, 1:3000(1), 1:5000(2) or 1:10 000(3)
  • 1:500, 1:3000(1) or 1:5000(2)
Matching speed
  • 0.6s in 1:1 mode / 0.7s in 1:500 mode
Match-on-Card capability
  • -
Fake Finger Detection
  • -
  • Yes
Security Layer
  • Optional
Certifications
  • MINEX & FIPS 201 compliant algorithms
  • CE, CB, FCC, UL
  • RoHS, REACH, WEEE
  • WHQL drivers
  • FBI PIV IQS / ISO 19794-4: 2011 (Annex. B)
  • MINEX & FIPS 201 compliant algorithms
  • STQC
  • CE, CB, FCC, UL
  • RoHS, REACH, WEEE
  • WHQL drivers

Notes:
(1) With MSO IDENTLITE License loaded in the device
(2) With MSO IDENTPLUS License loaded in the device
(3) With MSO IDENT10K License loaded in the device

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Frequently Asked Questions

The MSO 1300 Series offers superior performance with optical fingerprint technology, match-on-device and match-on-card capabilities, encryption, digital signatures, and fake finger detection.

It uses encryption, digital signature verification, and a secure communication channel to protect fingerprint data from tampering and unauthorized access.

The devices are FBI PIV IQS certified and compliant with FIPS 201, MINEX, and ISO 19794-4:2011 standards.

Depending on the license, it can store from 500 to 20,000 fingerprint templates.

The MSO 1300 E3 and MSO 1350 E3 models detect counterfeit fingerprints made from materials like latex, film, or rubber.
