MorphoWave™

by IDEMIA

Product Overview

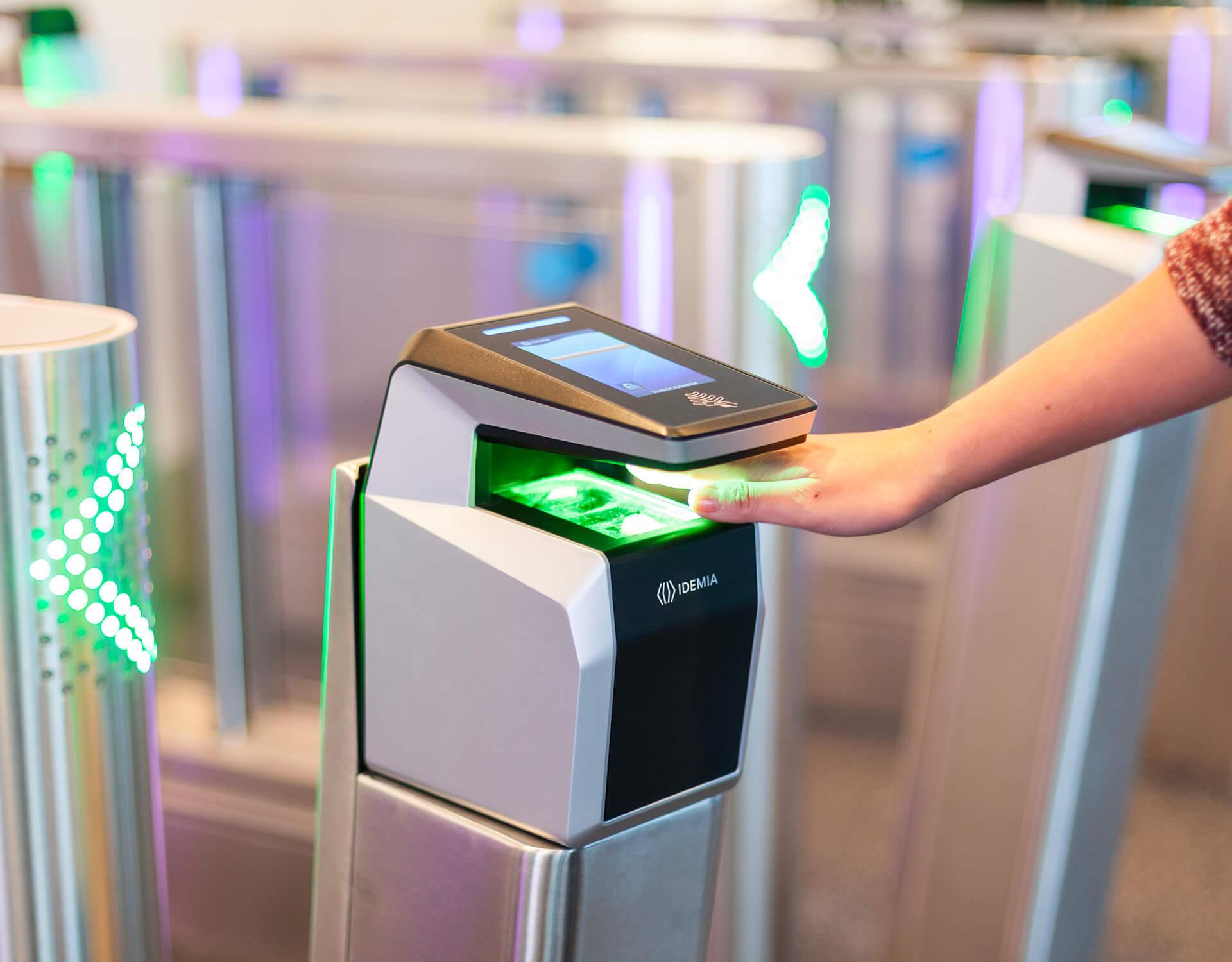

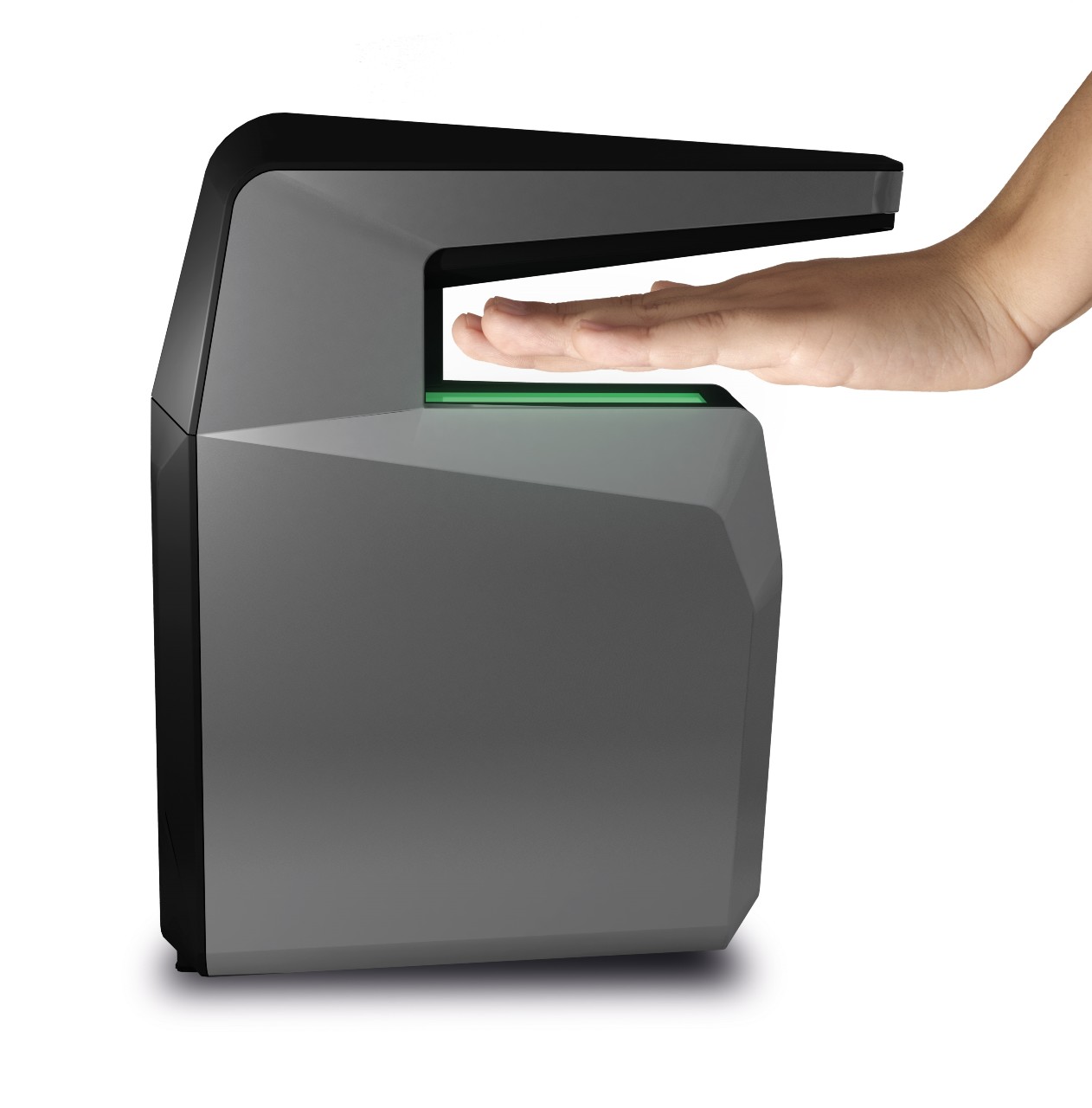

To protect their premises, organizations need access control solutions that are efficient, fast, and convenient. A contactless fingerprint scanner provides an optimum answer in high throughput workplaces. IDEMIA’s MorphoWave™ contactless fingerprint solution scans and verifies 4 fingerprints in less than 1 second, through a fully touchless hand wave gesture.

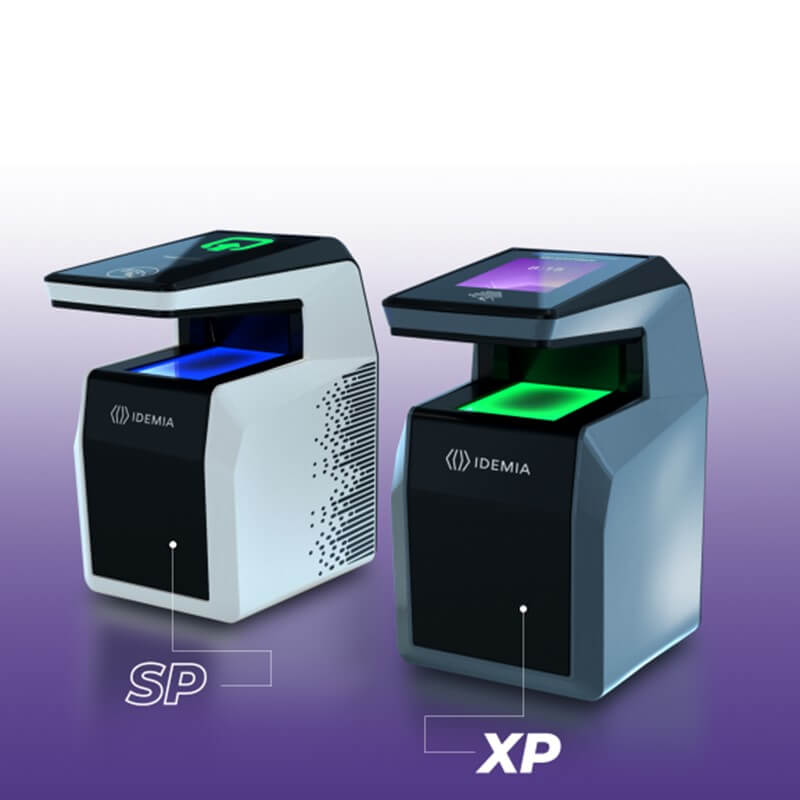

Two versions of the MorphoWave™ contactless fingerprint scanner are available:

MorphoWave™ XP: an eXtended Performance biometric reader for the most demanding projects; up to 100K user records in 1:n mode, up to 60 people per minute, with a large color tactile screen for user interaction, and time and attendances use cases

MorphoWave™ SP: all of the essentials of MorphoWave technology with a Simplified Profile up to 10K user records, and a simplified user interface via multicolor LED indicators

Embedded with IDEMIA’s latest advances in the use of Artificial Intelligence, these two ergonomic biometric readers work efficiently with wet, dry, dirty hands or even damaged fingerprints. In addition, the card reader of MorphoWave™ natively supports HID Prox, iClass, MIFARE, DESFire, and mobile access control solutions. It is also capable of scanning printed QR codes for visitor management.

Already integrated with more than 25 of the industry’s leading access control systems, MorphoWave™ technology has become the benchmark in frictionless access control. This advanced fingerprint solution range secures high traffic access points in the world’s largest financial institutions, critical infrastructure facilities, universities and healthcare organizations.

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Features & Benefits

  • Contactless fingerprint scanning for fast and hygienic identification
  • High-speed performance: identifies up to 60 users per minute
  • 3D scanning of four fingerprints in under a second
  • Handles wet, dry, or damaged fingers with high accuracy
  • Multi-factor authentication with built-in RFID & BLE readers
  • Supports MIFARE, DESFire, HID Prox, iClass, and SEOS cards
  • HID Mobile Access via BLE or NFC for added convenience
  • QR code scanning capability for visitor access
  • Stores up to 100,000 user records in 1:N identification mode
  • Secure communication with OSDP support for door controllers
  • Easy installation and integration with most PACS platforms
  • Designed for walls, turnstiles, gates, and pedestal mounting

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Technical Specifications

MorphoWave XP MorphoWave SP
CPU
  • Nvidia AMR Cortex A15 Quad core, 2.1 GHz
  • NXP AMR Cortex A53 Quad core, 1.8 GHz
Display
  • 4.3" WVGA color capacitive touchscreen
  • LED colors
Audio & Video
  • Loudspeaker & microphone (Intercom function)
  • Audio & video player
  • —
Touchless Fingerprint Sensor
  • Hand presence detection
  • QR code scanning capability (1)
  • QR code scanning capability (1)
Contactless Reader Options
  • Prox
  • iClass
  • MIFARE/DESFire
  • SEOS
  • HID mobile access
  • Prox
  • iClass
  • MIFARE/DESFire
  • SEOS
  • HID Prox mobile access
Tamper Switches
Internal Storage Capacity
  • 16 GB Flash, 2GB RAM
  • 40,000 user records (2*4 fingers each) for 1:N identification, extendable to 100,000 with license
  • 250,000 IDs in authorized user list
  • 1 Million transaction logs
  • 16 GB Flash, 2GB RAM
  • 10,000 user records (2*4 fingers each) for 1:N identification
  • 250,000 IDs in authorized user list
  • 1 Million transaction logs
Network/Communication
  • Ethernet, RS485, RS422, USB (2), Wi-Fi and 4G options
  • Ethernet, RS485, RS422 (2), Wi-Fi option
Inputs/Outputs
  • Wiegand In & Out (customizable up to 512 bits), OSDP, Door relay, 3 GPI (including door monitoring), 3 GPO
Power Supply
  • 12 to 24 V DC (2.5A min @12V), Power over Ethernet with PoE+ switches
Operating Conditions
  • Temperature: -10°C to 55°C (14°F to 131°F)
  • Humidity: 10%-80% (non-condensing)
Ingress Protection
  • IP65 (3)
HxWxD
  • 250*152*216 mm (9.9*6*8.5 in)
Weight
  • 2.2 kg (4.85 lb.)
EMC/Safety Standards
  • CE
  • CB
  • FCC
Compliance
  • RoHS, REACH, WEEE compliant

Notes:
(1) Printed QR codes only: specifications available on demand
(2) Micro-USB port for terminal configuration or dongle (Wi-Fi) connection
(3) Recommendation for outdoor installation: avoid direct exposure of sensor to rain and sunlight (e.g., place under a canopy)

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Frequently Asked Questions

MorphoWave is a touchless biometric access solution that captures and verifies four fingerprints in less than a second with a simple wave of the hand, ensuring fast and secure authentication.

MorphoWave SP is designed for streamlined access control with a 10,000-user capacity, while MorphoWave XP offers extended performance, supporting up to 100,000 users and high-speed throughput of 60 users per minute.

Yes, MorphoWave XP is designed for high-traffic environments, processing up to 60 users per minute while maintaining high accuracy and security.

MorphoWave supports multi-factor authentication, including biometric fingerprint recognition, RFID card scanning, BLE-based mobile credentials, and QR code scanning for visitor access.

Yes, MorphoWave devices are IP65-rated, meaning they are resistant to dust and water, making them suitable for both indoor and outdoor installations. They also work with wet, dry, or damaged fingers.

MorphoWave offers advanced security features such as OSDP-secure communication, fake finger detection, encryption, and tamper detection, ensuring robust access control.
