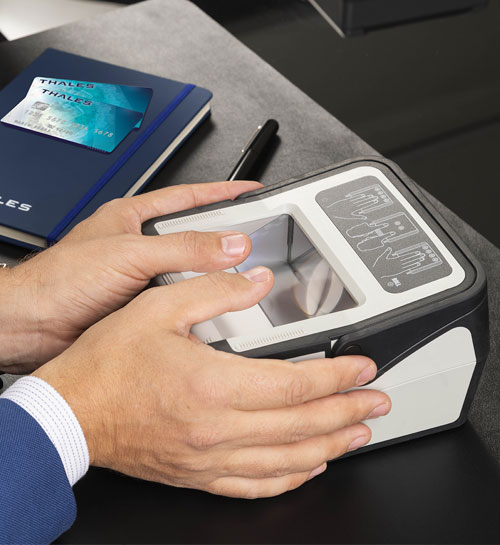

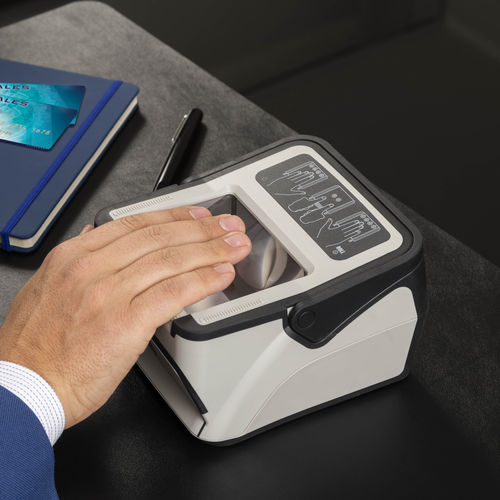

Multifinger Scanner CS500f

by Thales

Product Overview

The Multifinger Scanner CS500f offers a superior acquisition speed and USB 3.0 technology. It’s a compact and FBI App-F certified 10-print device suitable for all applications in need of 4-slaps and rolled acquisition. The main applications are for ID enrollment and verification, criminal background check and customer registration. An ergonomic design combined with an easy-to-integrate SDK architecture makes the Multifinger Scanner CS500f the perfect choice for system integrators and solution providers.

A user interface based on 12 tri-color leds facilitates the acquisition procedure by indicating the fingerprint(s) to be acquired and providing quality feedback thus eliminating the necessity for skilled operators and therefore increasing workflow efficiency. The scanner can be provided with a Fake finger Detection Solution (software based) in order to identify fake fingers.

Thales, Thales logos and product and/or service names are trademarks of Thales Group or its affiliates.

Features & Benefits

  • Easy to use: Intuitive Multifinger Scanner – Acquisition driven by a software interface explaining which finger to place and the result of acquisition - User Interface tri-color LED interface
  • LFD: Patented technology for Liveness Detection
  • FBI IAFIS IQS Appendix F (FAP60) & Mobile ID Appendix F certified
  • Easy integration: MultiScan SDK, multi-OS compatibility, and OEM module available
  • Flat&Rolled: it can acquire FLAT and ROLLED fingerprints

Thales, Thales logos and product and/or service names are trademarks of Thales Group or its affiliates.

Technical Specifications

Active Scanning Window
  • Flat four fingers up to 3.2” x 3.0”
  • Two flat thumbs up to 3.2” x 3.0”
  • Rolled finger up to 1.6” x 1.6” - 500 dpi
Scratch Resistant Surface
  • At least 6H hardness
Interface
  • USB 3.0
Image Quality and Formats
  • FBI IAFIS IQS Appendix F & Mobile ID FAP60 certified
  • ANSI/NIST-ITL 1-2007/2011 ISO/IEC FCD 19794-4
  • ANSI/NIST-ITL 1-2000, ANSI/NSI/NIST-ITL 1-2000 Interpol Implementation
Temperature
  • Storage: from -20°C to +60°C
  • Operating: from 0°C to +50°C
Humidity
  • From 10 to 90% (non-condensing)
  • IP RATING IP54
Dimensions
  • 151 mm x 148 mm x 102 mm
Weight
  • 1.5 Kg
Supported Operating Systems
  • Microsoft Windows® up to Win11 64-bit configuration
  • Linux Ubuntu and Fedora distributions in 32-bit and 64-bit configuration
  • Android
Certifications
  • CE, FCC, RoHS, CB, USB-IF
Options
  • Silicone Membrane

Thales, Thales logos and product and/or service names are trademarks of Thales Group or its affiliates.

Frequently Asked Questions

The Thales Multifinger Scanner CS500f is a compact ten-print livescanner designed for applications such as e-ID document issuance, criminal identification, and customer registration. It supports the collection of all ten fingerprints in 4-4-2 format (right four fingers, left four fingers, and two thumbs) and is suitable for both flat and rolled fingerprint acquisition.

Yes, the CS500f scanner is certified by the FBI according to the IAFIS IQS Appendix F standard, ensuring it meets the necessary quality standards for fingerprint acquisition.

The CS500f scanner is compatible with multiple operating systems, including Windows, Linux, and Android, facilitating easy integration into various platforms.

Yes, the CS500f scanner can be upgraded with a software-based liveness detection solution to identify fake fingers made from various materials, enhancing security against spoofing attempts.

The CS500f scanner has dimensions of 151 x 148 x 102 mm (5.9" x 5.8" x 4.0") and weighs approximately 1.5 kg (3.3 lbs.), making it suitable for both desktop and mobile installations.
