CBM-E4

by IDEMIA

Product Overview

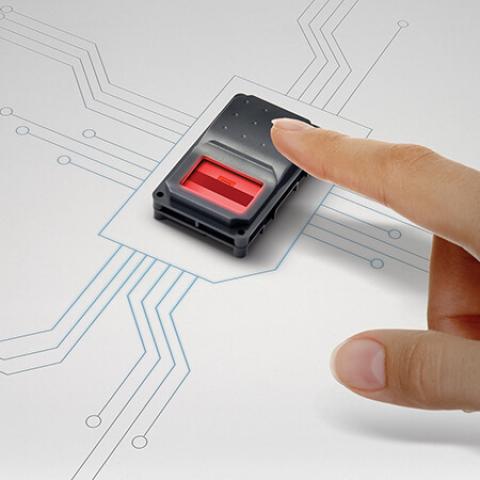

As the world leader in biometrics, IDEMIA can meet that need with the CBM* Series, the most compact optical fingerprint modules on the market. The solution draws on IDEMIA’s patented optical technology and biometric algorithms to provide best-in-class accuracy and reliability. The high quality of fingerprint acquisition, coupled with fast, secure processing on the modules’ embedded processor, provides outstanding performance. Meanwhile, the lightweight (20g) and compact design (53.7 x 33.7 x 13,65 mm) of the CBM Series make it a quick and easy solution to integrate. Its extensive security features include encryption and digital signatures as well as FBI PIV IQS certification and fake finger detection.

The CBM-E4 is IDEMIA Public Security’s fourth-generation compact fingerprint module. It uses IDEMIA’s patented optical technology and biometric algorithms, both acknowledged worldwide for their high levels of accuracy and performance and their exceptional robustness. Whether used for off-the-shelf or custom-made applications, the CBM-E4 offers a flexible, cost-effective solution for the fast and secure processing of high-quality fingerprint images.

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Features & Benefits

  • The best, most compact optical module on the market
  • Embedded processing capabilities: MINEX compliant Coder & Matcher inside
  • Easy integration of biometric functions into multiple applications
  • FBI PIV IQS certification and fake finger detection available
  • Extensive security features, including encryption and digital signature
  • High-quality fingerprint acquisition

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Technical Specifications

Acquisition Surface
  • 14 x 22 mm
Resolution
  • 500 dpi, 256 gray levels
Output Formats
  • RAW
  • ISO 19794-4
  • WSQ-compressed (under license)
Embedded Processing
  • WSQ compression
  • MINEX/FIPS 201 compliant feature extraction
  • Biometric Matching (1:1 authentication or 1:N identification)
  • Internal database for template storage
Security Features
  • Signed certificate on every device
  • Secure tunneling mode
  • AES-256, SHA-256 encryption
  • Privacy mode protection
Fake Finger Detection
  • Detects counterfeit fingerprints including those made with latex, Plasticine, Kapton, transparent film, rubber, Play-Doh, graphite, and paper.
Robustness
  • IP65-rated sensing area (sealed against dust and liquids)
  • Resistance to electro-static discharges, scratches, and shocks
  • Operating conditions: -10°C to 50°C / 10% to 80% RH
  • Storage conditions: -20°C to 70°C / 5% to 95% RH
Interfaces
  • USB and Serial (TTL Open-Collector)
Software Development Kit
  • MSO SDK available, with low-level protocol ILV
Database Capacity
  • Users: 3000 (up to 5000 with IDENTPLUS license)
  • Templates: 6000 (up to 10,000 with IDENTPLUS license)
Matching Speed
  • 0.6s in 1:1 mode / 0.7s in 1:500 mode
Certifications
  • FBI PIV IQS / ISO 19794-4: 2011 (Annex B)
  • CE, CB, FCC, UL
  • RoHS, REACH, WEEE

IDEMIA, IDEMIA logos and product and/or service names are trademarks of IDEMIA or its affiliates.

Frequently Asked Questions

The CBM-E4 is an advanced biometric fingerprint module designed for secure identification, authentication, and access control applications in government, banking, and law enforcement.

Yes, the CBM-E4 includes advanced security features such as AES-256 encryption, secure tunneling, and privacy mode protection for secure data transmission.

Yes, the CBM-E4 has built-in fake finger detection technology to recognize counterfeit fingerprints made from materials like latex, silicone, and paper.

The CBM-E4 is widely used in government security, financial institutions, law enforcement, border control, and other industries requiring secure biometric authentication and identification.

The CBM-E4 is certified with FBI PIV IQS, CE, CB, FCC, and UL, and is compliant with RoHS, REACH, and WEEE regulations.
